Granulation Die Plate

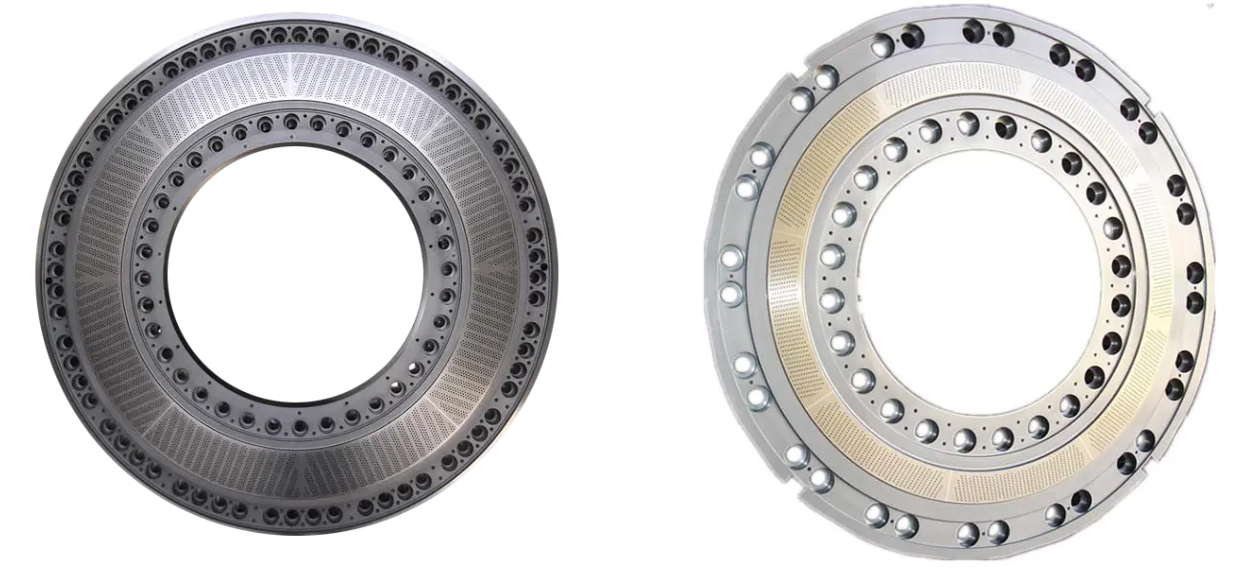

Granulation die plate
Technical data
Die Plate Heating Medium: Steam to 6MPa or Oil temperature to 300℃.
Working pressure to 30MPa.
The number of die plate holes varies from 50 to 7000 holes according to the clients’ requirement, and the aperture could be from 0.5mm to 3.5mm.
The diameter of the die plate could be from 120mm to 1600mm and the annual capacity of the production line could reach 450,000 tons.
Jinfeng die plates are mainly used for pelletizing LDPE, LLDPE, HDPE, PP, ABS, PC, PS and other high polymer such as EVA, SAN, etc.
Product description
Shenyang Jinfeng has rich experiences in designing and manufacturing underwater pelletizing die plates in China.
We adopt advanced numerical simulation technology and finite element analysis methods to provide reliable theoretical basis to design and manufacture the hot runners, material runners, die holes and thermal insulation layer structures, hard face and main body of the die plates.
We can design and manufacture the granulation die plates suitable for producing various grade resins according to the process conditions and the operation conditions of the underwater pelletizing extrusion production line.
Shenyang Jinfeng Granulation Die Plate Achievement Display
With the continuous improvement of the production capacity of single-machine granulation equipment in petrochemical enterprises, the diameter of granulation template gradually increased. In order to meet the market demand, the granulation template produced by Jinfeng Company for the domestic large granulation unit has been put into use in 2016 and has achieved one-off success. granulation Pelleziting Die Plate suitable for the production of various resin grades according to the granulation process conditions and the operation conditions of the granulation production line.
|
Outer Diameter of Die Plate: |
1223mm |
| Number of holes | 6125 |
|
Thickness of Die Plate: |
112mm |
| Aperture: | Φ3.5 |

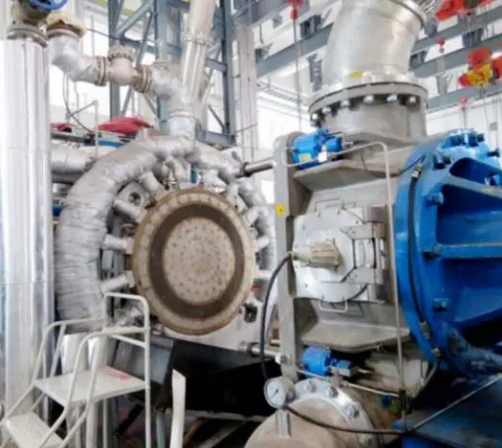

The granulation unit is manufactured by German CWP company. The die plate manufactured by Jinfeng works well and the shape of the particles is uniform, with round and smooth surface.
|
Outer Diameter of Die Plate: |
1300mm |
| Number of holes | 2832 |
|
Thickness of Die Plate: |
160mm |
| Aperture: | Φ2.6 |
The granulation unit is manufactured by Japanese company. The die plate manufactured by Jinfeng works well to meet the customer’s requirements.
Ordos Zhongtian Hechuang 300,000 tons LDPE
|
Outer Diameter of Die Plate: |
1300mm |
| Number of holes | 4560 |
|
Thickness of Die Plate: |
140mm |
| Aperture: | Φ3.4 |
This 300,000-ton LLDPE production line was designed, manufactured and installed independently by the manufacturer from China. The die plate, the pelletizer knives and the pelletizing knife holder were designed and manufactured by Jinfeng company.
