Practical Inquiry Guide
Technical Resources for Die Plates and Pelletizer Knives
Accurate technical information helps identify a pelletizing component and define the scope of a quotation. This guide explains what to prepare for inquiries involving pelletizing die plates, complete pelletizer knives, cutter hubs, and die plate repair.
Information Needed for a Die Plate Inquiry
Engineers, maintenance teams, equipment manufacturers, and industrial buyers can use the sections below as a checklist before contacting JINFENG.
Begin with the latest die plate drawing if it is available. Include the drawing revision and mark the dimensions or features that are important to the request.
Useful information includes:
- Overall dimensions
- Mounting and connection interfaces
- Die-hole arrangement
- Melt-passage information shown on the drawing
- Heating-channel information
- Die face and cutting-side details
- Equipment manufacturer and model for identification
- Polymer type and grade
- Relevant operating conditions
- Required quantity
- Inspection or documentation requirements
If the drawing is incomplete, add photographs and dimensions from the existing die plate. A physical sample can also be evaluated.
Identifying the Die Plate, Die Face, and Hard Face
These terms describe different parts or areas of the component:

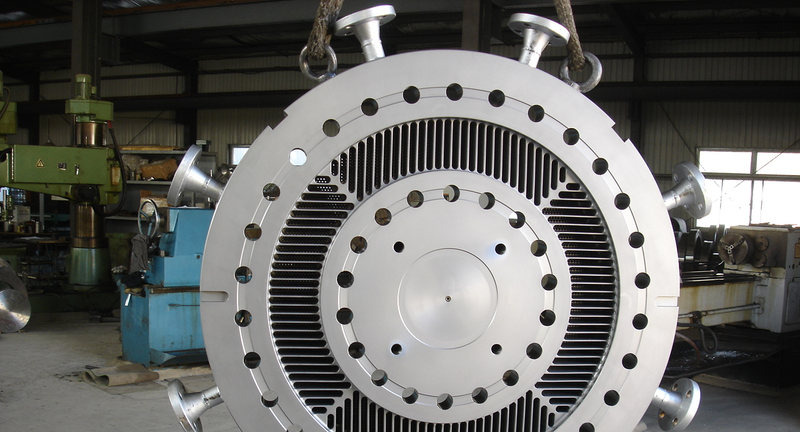

- Die plate: the complete component used in the pelletizing system. Its drawing or sample can show the die-hole area, melt passages, heating features, interfaces, and cutting-side surface.
- Die face: the overall surface facing the cutting chamber.
- Die plate hard face: the wear-resistant working area on the cutting side of the die plate.
Using these terms consistently helps avoid confusion when drawings, photos, or samples are reviewed. In a repair inquiry, identify whether the issue affects the overall die face, the hard face, the die holes, the heating channels, or another part of the component.
Information Needed for Pelletizer Knives

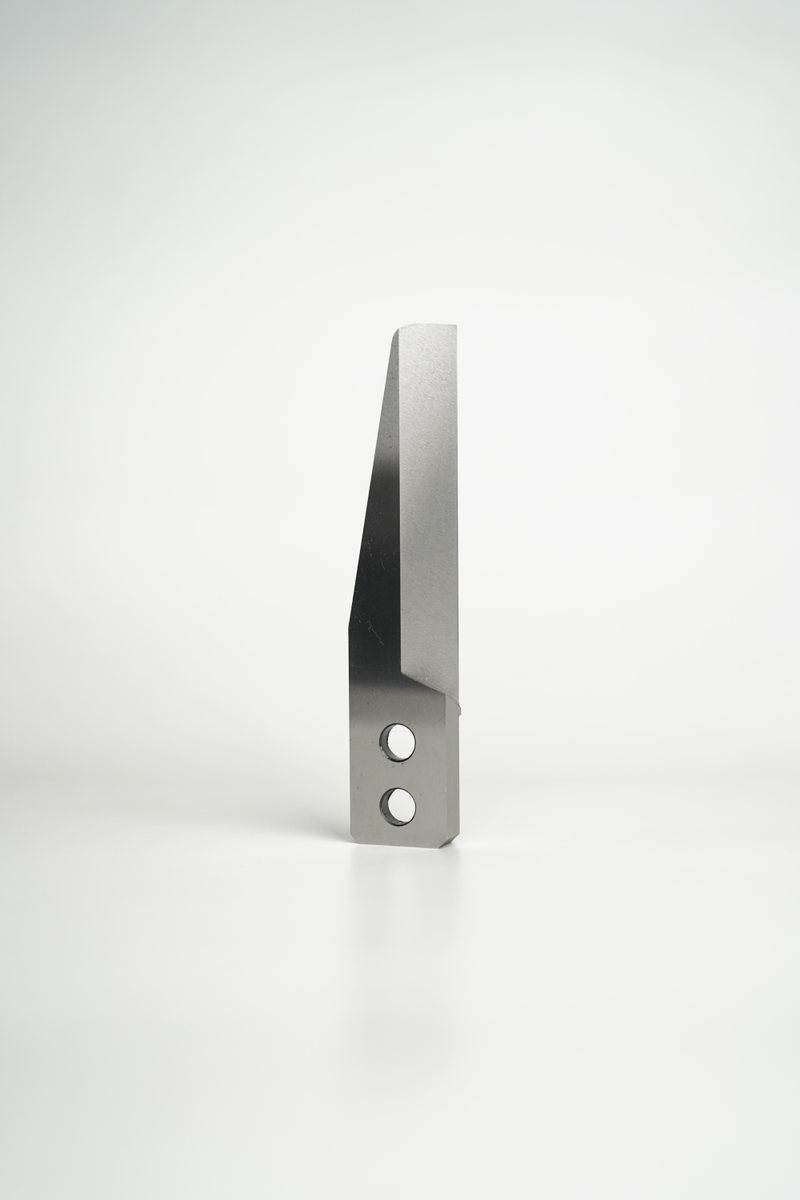

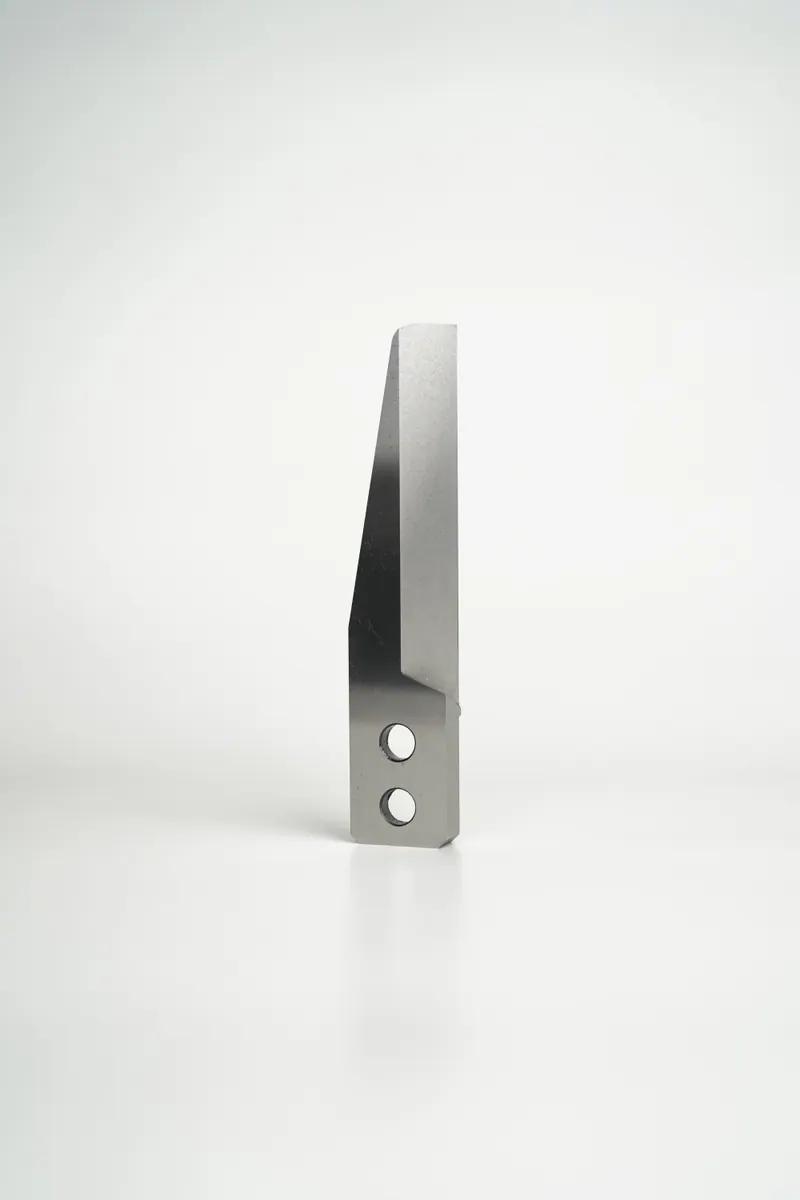

For complete pelletizer knives, provide:
- Knife drawing or clear dimensions
- Photos of the complete knife and mounting features
- Required quantity
- Sample availability
- Equipment information for identification
- Polymer and operating conditions
- Working-area material or hardness requirements shown on the drawing
- Inspection or documentation requirements
The geometry of the mounting features and working area should be clear in the supplied information. If several knives are installed on one cutter hub, include the number of knives and their mounting arrangement.
Understanding the Pelletizer Cutter Hub

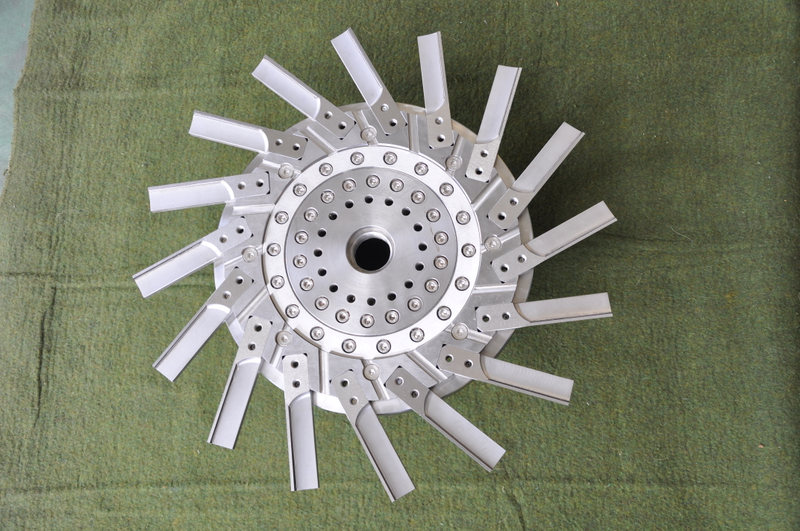

A pelletizer cutter hub is a circular hub or disc that carries multiple pelletizing knives. It connects to the pelletizer shaft and positions the knives relative to the die plate.
For a cutter hub inquiry, provide the hub drawing, shaft connection, mounting interfaces, knife positions, overall dimensions, and photos of the existing component. A sample can be evaluated when complete drawings are unavailable.
Cutter hubs may be supplied separately or together with complete pelletizing knives. The required configuration is checked from the drawing, dimensions, interfaces, and operating conditions.
Selecting Inspection Requirements
Inspection requirements should be identified before quotation whenever possible. JINFENG's in-house capabilities include dimensional inspection, hardness testing, die-hole inspection, surface inspection, and heating-channel pressure testing.
The applicable methods depend on the component:
- Die plates may require dimensional, die-hole, surface, hardness, and heating-channel checks.
- Pelletizer knives may require dimensional, hardness, and surface inspection.
- Cutter hub inspection is developed around dimensions, the shaft connection, mounting interfaces, and knife-position features.
Ultrasonic testing (UT) can be arranged through a qualified third-party inspection provider when required. State any third-party inspection or documentation requirement with the inquiry.
Preparing Photos, Drawings, and Samples
Drawings
Use the latest revision and include units. Mark critical dimensions, material callouts, working areas, interfaces, and inspection points clearly.
Photographs
Provide one view of the complete component and close views of important features. For wear or damage, photograph the affected area from more than one angle. A scale or known dimension can help with initial identification.
Samples
Before sending a sample, share photographs and basic dimensions with JINFENG. Identify the product, equipment, polymer, operating conditions, and purpose of the evaluation. Used die plates submitted for repair should include a description of the observed problem and any known repair history.
When a Die Plate Repair Assessment Is Needed
A repair assessment is appropriate when an existing die plate shows wear or damage, requires regrinding, has a hard face issue, or needs heating-channel evaluation.
The assessment begins with inspection of the component. Depending on its condition, repair operations may include:
- Cleaning
- Grinding or regrinding
- Hard face replacement
- Heating-channel repair
- Pressure testing
- Third-party UT when required
Wear, damage, remaining thickness, structural condition, and the condition of the heating channels are considered before the repair scope is defined.
Preparing a Complete Inquiry Package
Before contacting JINFENG, check that your inquiry includes:
- Product or service required
- Drawing and revision, if available
- Dimensions and interface details
- Clear photographs
- Sample availability
- Equipment information for identification
- Polymer and relevant operating conditions
- Required quantity
- Inspection and documentation requirements
- Description of wear or damage for repair work
This information helps reduce follow-up questions and supports a more focused technical review.
Frequently Asked Questions
What if I do not have the original drawing?
Send photographs, clear dimensions, equipment information, and sample details. JINFENG can review the available information and identify the next technical questions.
Should equipment brand and model be included?
Yes, when available. This information helps identify the component, but drawings, dimensions, and interfaces are still needed to define the required configuration.
What should I send for a repair inquiry?
Provide photos of the complete die plate and damaged areas, dimensional information, operating context, previous repair history if known, and sample availability.
Prepare Your Inquiry for Technical Review
Prepare your drawing, dimensions, photos, sample details, and operating information, then send them to JINFENG for technical review.
